Home > GAS GRILL > Side burner > GS200B

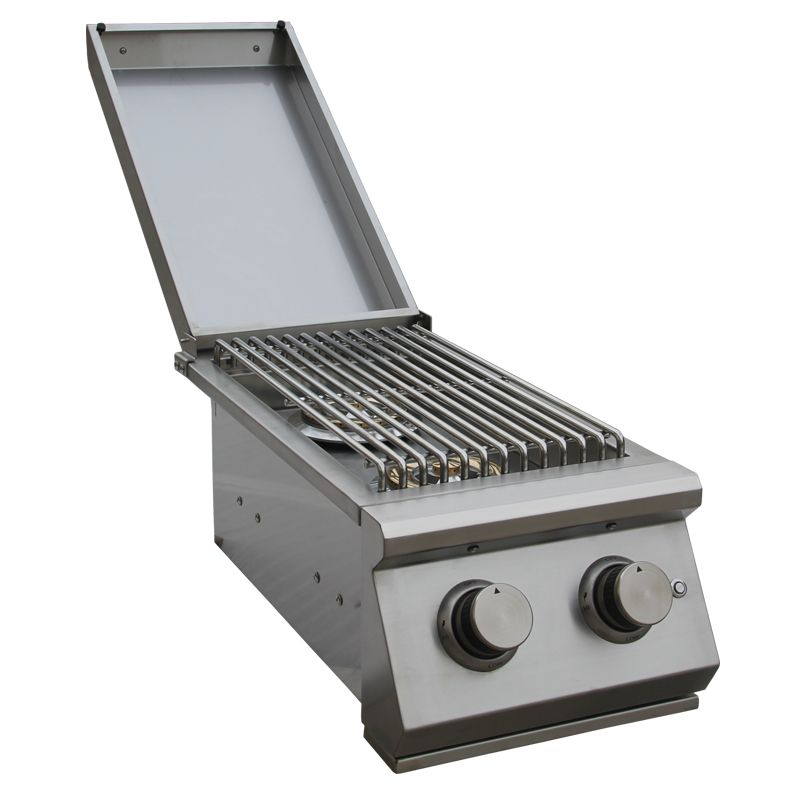

Side burner

●All 304 stainless steel.

●2 Cast brass burner, 24,000 BTU.

●Gas type: LP/NG.

●LED light available.

●Overall Dimension: W13"*H11"*D25"

●Cutout Dimension: W10.79"*H8.35"*D21.22"

SPECIFICATIONS

SUS 304 Built-in Dual Side Burner

Sub_Cat.	Side burner
Material	304 Stainless Steel Construction
Fuel Type	LP/NG
Lid	304 S/S, 17 Guage
Cooking Grid	304 S/S, ɸ=8mm
Warming Rack	304 S/S, ɸ=6mm
Heat input	S/S tube burner
Control Panel	304 S/S, 20 Guage
Side Shelf	304 S/S, 20 Guage
Package	1PC/CTN
Cut-Out(inch) Dimension	21.22 L
	10.79 W
	8.35 H
Cut-Out(cm) Dimension	53.89 L
	27.40 W
	21.20 H
Overall(inch)	25 L
	13 W
	11 H
Overall(cm)	63.5 L
	33.02 W
	27.94 H
Ignition Mode	Piezo Igniter
Main Buner	Cast Brass burnerx2
BTU	24,000
G.W. / CTN	38 LBS
G.W. / CTN	17 KGS
Package(inch) Dimension	28 L
	15.7 W
	15.7 H
Package(cm) Dimension	72 L
	40 W
	40 H
CBM/CTN	0.1152
Cu. ft/CTN	4.0666
Quantity for 40' HQ	522

GS200B
