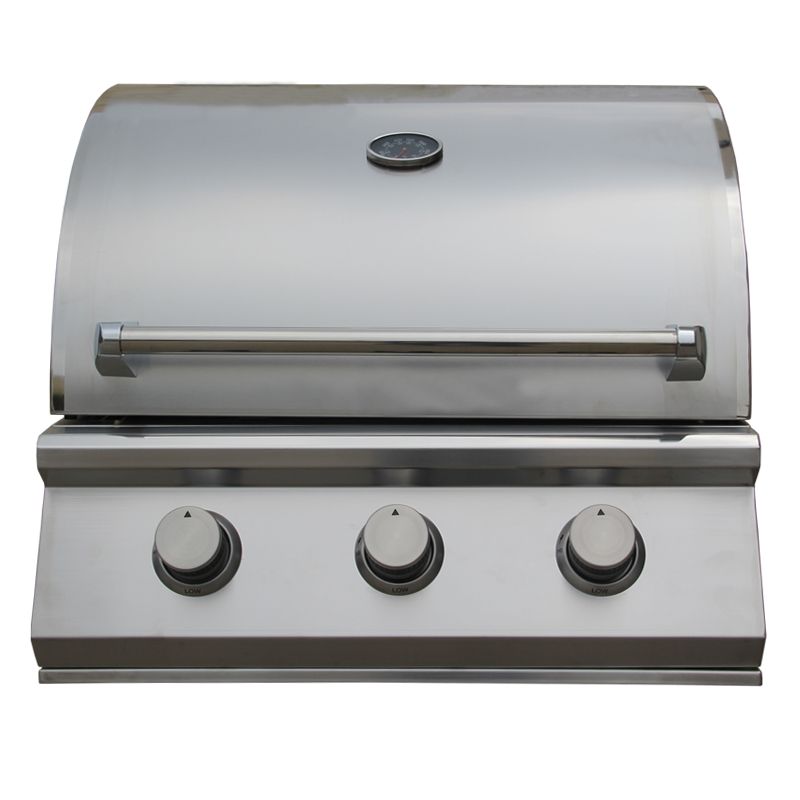

●All commercial grade 304 stainless steel construction.
●12,000 BTUs per burner, total 36,000 BTUs.
●Heavy gauge 304 stainless steel tube main burners.
●8mm stainless steel 304 cooking grates.
●Push and turn flame-thrower primary ignition system, fire crossers secondary ignition system.
●Total cooking surface 576 sq inches .
●Flame tamers minimize flare-ups while adding a grilled flavor.
●Double-lined grill hood protects outer layer from heat discoloration and maintains more heat.
●Fuel type: LP/NG.
●Grill cart available for this model.
●Inside halogen lights and control panel LED lights available.
| Material | 304 Stainless Steel Construction | |
| Fuel Type | LP/NG | |
| Lid | 304 S/S, 17 Guage | |
| Cooking Grid | 304 S/S, ɸ=8mm | |
| Warming Rack | 304 S/S, ɸ=6mm | |
| Heat input | S/S tube burner, | |
| Control Panel | 304 S/S, 20 Guage | |
| Package | 1PC/CTN | |
| Cut-Out(inch) Dimension | 23.03 L | |
| 23.35 W | ||
| 8.46 H | ||
| Cut-Out(cm) Dimension | 58.49 L | |
| 59.30 W | ||
| 21.48 H | ||
| Overall(inch) | 23 L | |
| 25.4 W | ||
| 21.7 H | ||
| Overall(cm) | 58.42 L | |
| 64.51 W | ||
| 55.11 H | ||
| Ignition Mode | Piezo Igniter | |
| Main Buner | 3 | |
| BTU | 36,000 | |
| Total Cooking Area/Sq.inch | 576 | |
| Cooking Area/Sq. inch | 440 | |
| Warming Area /Sq. Inches | 136 | |
| G.W. / CTN | 95 LBS | |
| 43.0 KGS | ||
| N.W. /CTN | 80 LBS | |
| 36.3 KGS | ||
| Package(inch) Dimension | 25.78 L | |
| 27.95 W | ||
| 24.40 H | ||
| Package(cm) Dimension | 65.5 L | |
| 71 W | ||
| 62 H | ||
| CBM/CTN | 0.2883 | |
| Cu. ft/CTN | 10.1823 | |
| Quantity for 40' HQ | 216 | |
